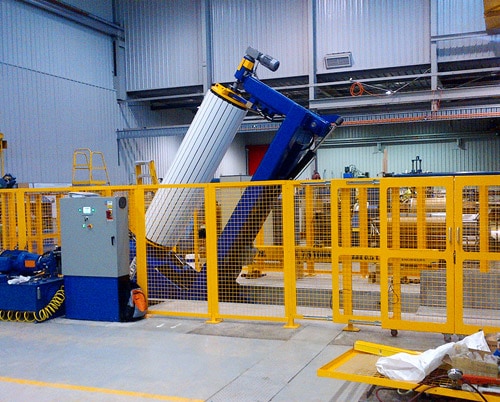

This coil uprighter was designed and manufactured by ETSM Technical Services, Ltd. for use in the transformer manufacturing industry. Every part of the machine was fabricated and it was manufactured with CNC machining and MIG welding by certified welders. It features hydraulic operated locks to secure the arbour, a one-minute elapsed time to upright the coil and automated arbour adjustments in both horizontal and vertical positions.

This upender also includes a category 3 rating safety circuit with dual redundant monitored contactors and dual contacts in the emergency stop devices. Ship time was 20 weeks to Savannah, Georgia (USA) and Australia. We manufacture to your custom specifications as well as to other industry and governmental standards, and installation is completed with ETSM supervision.

Project Highlights for Arbour Hydraulic Uprighter

Product Description

ETSM designed and manufactured this hydraulic operated arbour, coil upender for use in the transformer manufacturing industry.

Capabilities Applied/Processes


  • Create Concepts
  • Create 3D CAD Models and CAD Detail Drawings
  • Finite Element Analysis
  • Structural Design Certification by 3rd Party Professional Engineer
  • Electrical System Approval Certification by 3rd Party

Machine Programming Documentation

  • Operation/Installation Manual
  • Electrical Schematics
  • Hydraulic Schematics
  • CAD Detail Drawings
  • Certificates & Inspection Sheets


  • Flame Cutting
  • CNC Machining
  • MIG welding by certified welders
  • Powder Coating


  • 1 year standard, longer is negotiable Installation
  • Installation Completed with ETSM Supervision Commissioning
  • Commission on Site by ETSM Technician
System Specifications


  • Maximum Weight: 25,000lbs
  • 1 Min. Elapsed Time to Upright Coil and Arbour
  • Hydraulic Operated Locks to Secure Arbour
  • Arbour Adjustment in Both Horizontal & Vertical Positions
  • Automated Adjustment
    Access Tower w/ Extending Platform
  • Electrical Power: 480V 3 Phase & Ground


  • Laser Scanner
  • Category 3 Rating Safety Circuit
  • Dual Redundant Monitored Contactors and Dual Contacts in the E-Stop Devices
  • Perimeter Fencing and Sliding Gates
Equipment Used to Manufacture Part

CNC Machining Center
CNC Boring Mill

CNC Lathes

System Size

Length: 288mm
Width: 247mm

Height: 198mm

Manufacturing Tightest Tolerances

Some machine surfaces i.e. bearing journals etc., +/- .0005

Materials Used

Electrical Conduit

Material Finish

Powder Coated

In process testing/inspection performed

Operation Testing

  • Check Operation of Uprighter Rotating the Mandrel Load testing
Industry for Use

Transformer Manufacturing

Delivery Time

16 to 20 Weeks

Delivery Locations

Savannah, Georgia

Standards Met

Customer supplied specifications

SPE 1000
CWB Welding Specifications,
3rd Party Structural Engineer Review and Certification

Product Name

Hydraulic Operated Arbour, Coil Upender
